Biohulladék menhely
Bio waste
Waste containers and waste are commodities that need a lot of resources (money) to manage.
Because the bins or containers are often optimized in order to have them always available for the user, they are being emptied much to often in the public space.
In private collections it is often opposite, since the user needs to pay for every collection, so they want to do it as efficient as possible, even when they means that bins are full in the last day(s). All these cases can be optimized by using smart sollutions, like access control or fill level sensors.
Bio waste shelter customization

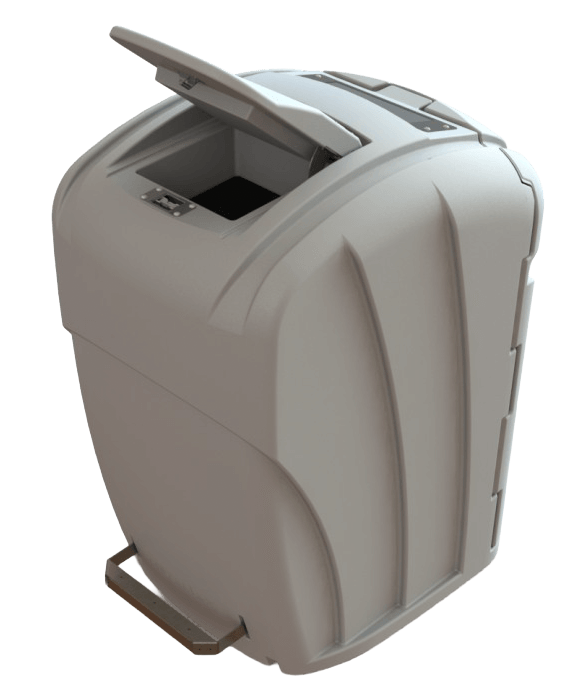

Waste is disposed via an easy-to-access aperture and stored in the partially-underground system. Access control systems are available to prevent unauthorized access. To empty, the lid and liner are lifted from the plastic outer container and positioned above the collection vehicle. A special mechanism allows the bag to be opened and closed again after emptying.
Users access options
- Mechanics
- Electronics
2-wheel bin
- 120L
- 240L
- 360L
Collection option
- Front
- Rear
Modern and Robust
With a modern design, our BioBinShelter combines the aesthetics with functionality and robustness, being the ideal solution for collecting proximity of biowaste in the multifamily areas.

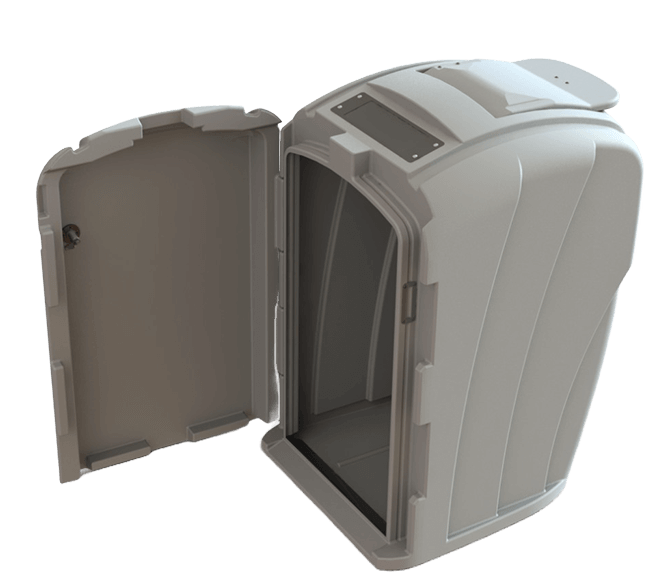

It allows you to house a 2-wheel container with capacity up to 360 liters, which can be collected by front or rear door, depending on the site conditions. It is equipped with a mouthpiece funneled deposition and protected by a lid.
The equipment is manufactured in HDPE (polyethylene high density) by process of lightning-stabilized rotomolding ultraviolet, being 100% recyclable. The structural elements and fixing metals are manufactured in stainless steel.

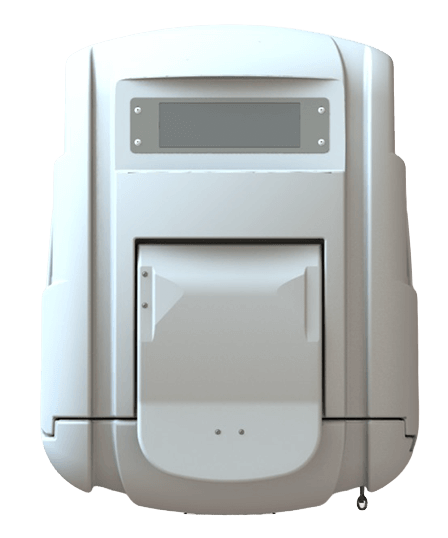

Solar panel (option)
For the access control system, the system is powered by solar panel.
Design and Robustness
The equipment was designed with outer ribs in order to create a light but robust structure and, simultaneously, allow create a water drainage channels.
Lock
Equipped with lock for the collection operation of 2-wheel container.
Ramp
Facilitates the operation of the container’s collection.
Characteristics
- Capacity: 120L / 240L / 360L
- Weight: 40kg
- Height: 1320mm
- Width: 800mm
- Depth: 1030mm
Reference colors
Other colors upon request
Gray
Yellow
Brown
Green
Blue
Orange
Options

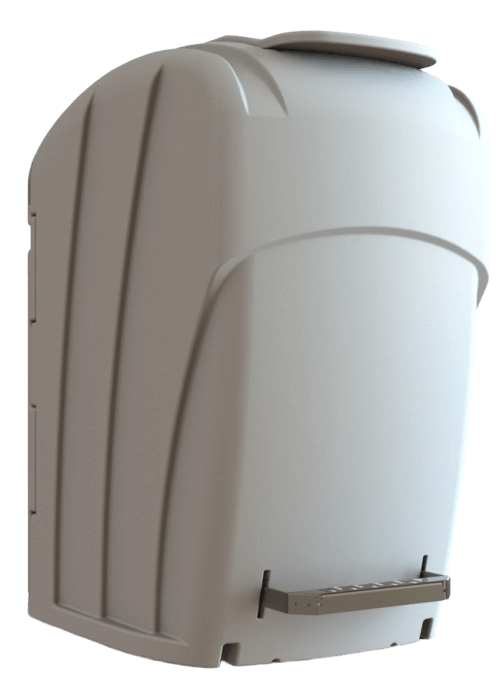

- Pedal to open the lid.
- Personalization (sticker, serigraphy or others).
- Installation of access control.
Access Control via RFID
Possibility of incorporating an access control system, with identification of user via RFID.
By validating a card or keyhanger, the user has access or not to deposit the residues on the equipment. A reader is installed in each device, an electronic lock and the solar panel feeds the system and reduces the power of the battery and extending its useful life.
The reader is the user interface that is located in the front area and has a display (screen) that allows the user to be informed of the correct reading of the electronic identifier.
